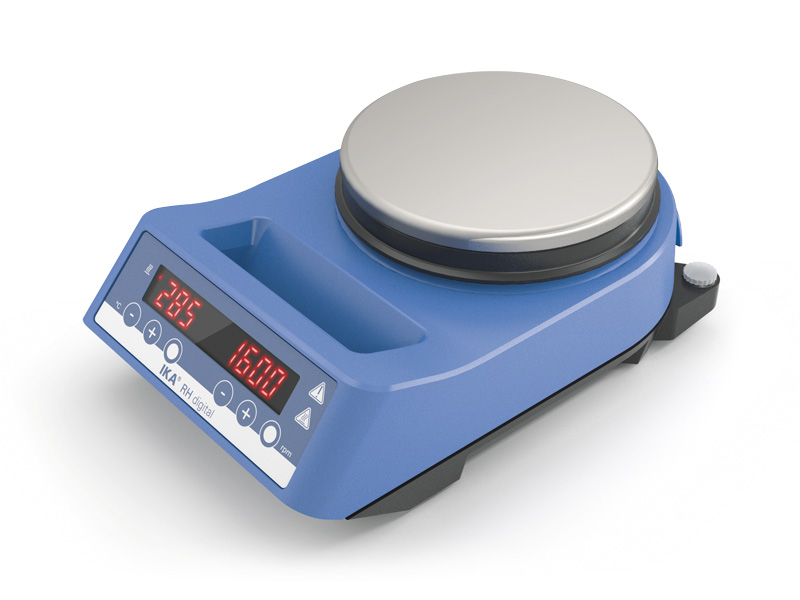

Innovatively designed digital magnetic stirrer with heating. Bushing according to DIN 12878 for connecting an electronic contact thermometer, such as the ETS-D5. Highly accurate temperature control is possible with sensor placed directly in the medium. High heat output of 600 watts and white ceramic heating plate ensures rapid heating. Adjustable safety temperature from 100 to 360 °C.
Digital display of temperature and speed
Soft-start of stirring motor
Strong magnetic field and wide speed range for volumes up to 15 liters
Error code display
Easy operation with touch keypad
| 攪拌點位數目 | 1 |
| 攪拌量 (H2O) | 15 l |
| 電機輸出功率 | 2 W |
| Direction of rotation | left |
| Speed display set-value | LED |
| 轉速控制 | Button |
| 速度范圍 | 100 - 2000 rpm |
| 小攪拌子長度 | 20 mm |
| 攪拌子長度 | 80 mm |
| 加熱盤自熱（室溫:22°C/保持:1小時） | 28 +K |
| 加熱輸出功率 | 600 W |
| Temperature display set-value | LED |
| Temperature unit | °C |
| 加熱溫度范圍 | 50 - 320 °C |
| 加熱溫度控制 | Button |
| Temperature setting range min. | 50 °C |
| Temperature setting range max. | 320 °C |
| 加熱速度 | 6 K/min |
| 外接溫度傳感器接口 | ETS-D5 |
| 可調安全溫度回路小值 | 100 °C |
| 可調安全溫度回路值 | 360 °C |
| 工作盤材質 | 技術搪瓷 |
| 工作盤外形尺寸 | ? 135 mm |
| Automatic reverse rotation | 不 |
| Intermittend mode | 不 |
| 粘度變化趨勢測量 | 不 |
| 攪拌子跳子檢測 | 不 |
| 計時器 | 不 |
| pH measurement | 不 |
| Graph function | 不 |
| Programs | 不 |
| Sensor in medium detection (Error 5) | 不 |
| 稱重功能 | 不 |
| 外形尺寸 | 160 x 100 x 250 mm |
| 重量 | 2.8 kg |
| 允許環境溫度 | 5 - 40 °C |
| 允許相對濕度 | 80 % |
| DIN EN 60529 保護方式 | IP 21 |
| RS 232接口 | 不 |
| USB接口 | 不 |
| 模擬輸出 | 不 |
| 電壓 | 230 / 115 / 100 V |
| 頻率 | 50/60 Hz |
| 儀器輸入功率 | 620 W |
